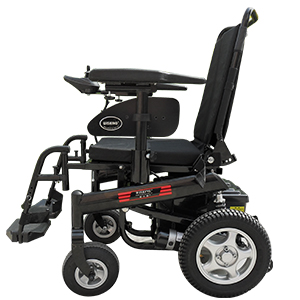

Wisking 1023-22
Type: 1023-22
- Color:
Long range of around 40KM for the middle wheelchair.
Seat and backrest cushion can be easily remove for cleaning.
Controllers can be interchanged with right and left side.
Easy access tiller-mounted charger port.
Modern design Led lights for all lights.
Specification
Length
112cm
Width
6cm
Height
104cm
Weight capacity
150kg
Wheels
Front：10”air tire Rear：14”air tire
Incline capability
12 degrees
Max.forward speed
8-10km/h
Range
up to 40km per battery charge
Controller
PG(Imported from UK)
Motor
24V/320W*2(Imported from Taiwan)
Charger
24V/5A
Battery
12V/55AH*2
suspention
Front：with Rear：optional
Recharge time
10-12hrs
Seat depth
45cm
Seat width
45cm
Seat height
55cm
Net weight(with batteries)
90kg
Net weight(without batteries)
56kg
Battery dimension
23*13.8*22.6cm*2
Packge
2ctns
